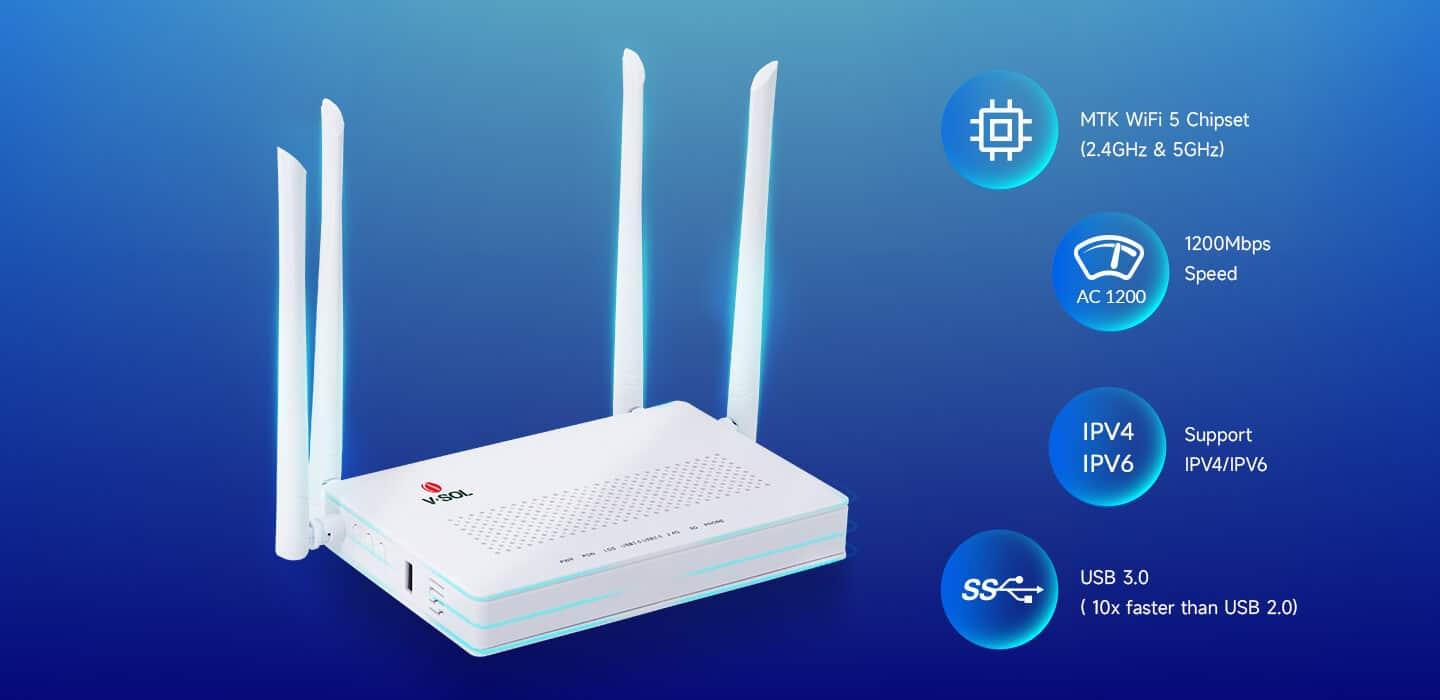

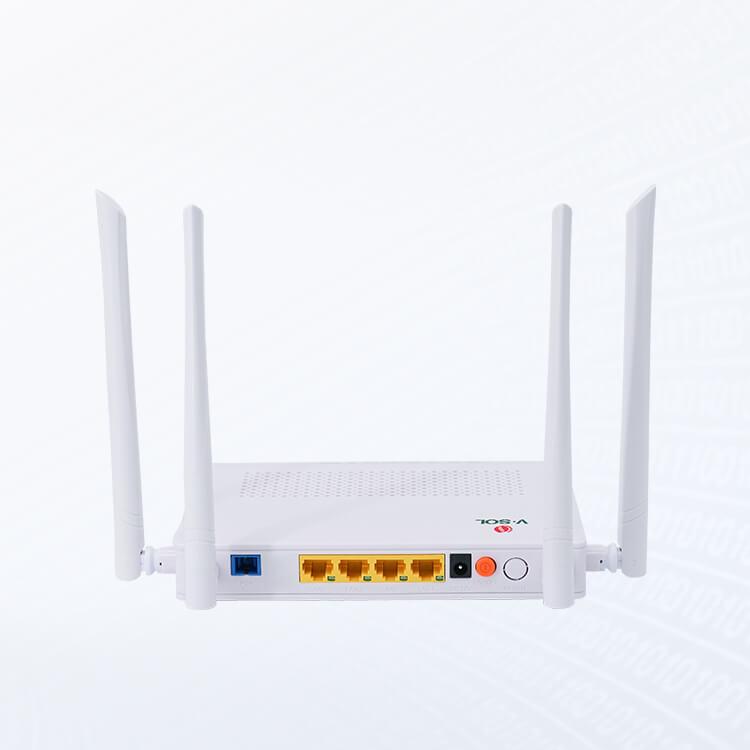

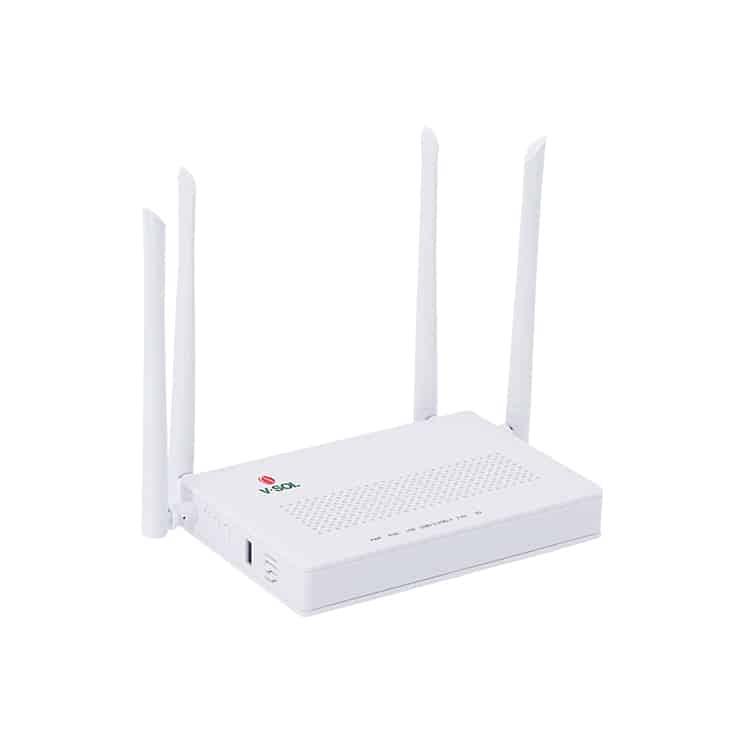

4GE+Wi-Fi 5+1USB ONT

Dimension

205mm×140mm×37mm(L×W×H)

Net weight

0.34Kg

Operating condition

Operating temp: -10 ~ +55°C

Operating humidity: 5 ~ 95%  (non-condensed)

Storing condition

Storing temp: -40 ~ +70°C

Storing humidity: 5 ~ 95%  (non-condensed)

Power adapter

DC 12V, 1/1.5A, external AC-DC power adaptor

Power supply

≤10W

Interfaces

4GE+Wi-Fi 5+USB 3.0

Indicators

PWR, PON, LOS, WAN, ETH1~ETH4, 2.4Ghz Wi-Fi, 5Ghz Wi-Fi, WPS, USB

○   Interface parameter

PON interface

l  1XPON port(EPON PX20+ and GPON Class B+)

l  SC single mode, SC/UPC connector

l  TX optical power: 0 ～ +4dBm

l  RX sensitivity: -27dBm

l  Overload optical power: -3dBm(EPON) or -8dBm (GPON)

l  Transmission distance: 20KM

l  Wavelength: TX 1310nm, RX1490nm

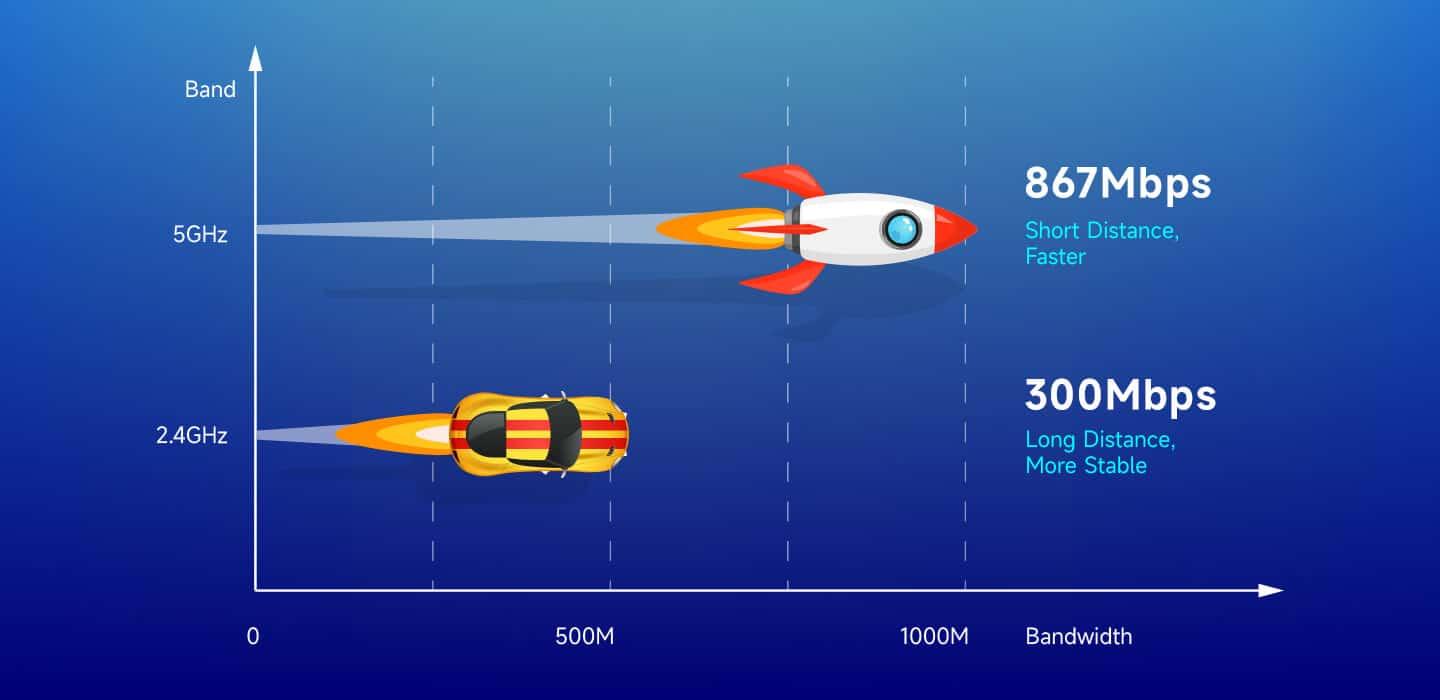

Wi-Fi interface

l  Compliant with IEEE802.11b/g/n/ac

l  2.4GHz Operating frequency: 2.4000-2.4835GHz

l  5.0GHz Operating frequency: 5.150-5.825GHz

l  Support MIMO, rate up to 1.167Gbps

l  Wi-Fi: 2.4GHz( 2T2R ), 5.8GHz( 2T2R ), 5dBi antenna, support: multiple SSID

l  TX power: 11n–22dBm/11ac–24dBm

LAN interface

4*GE, Auto-negotiation, RJ45 ports

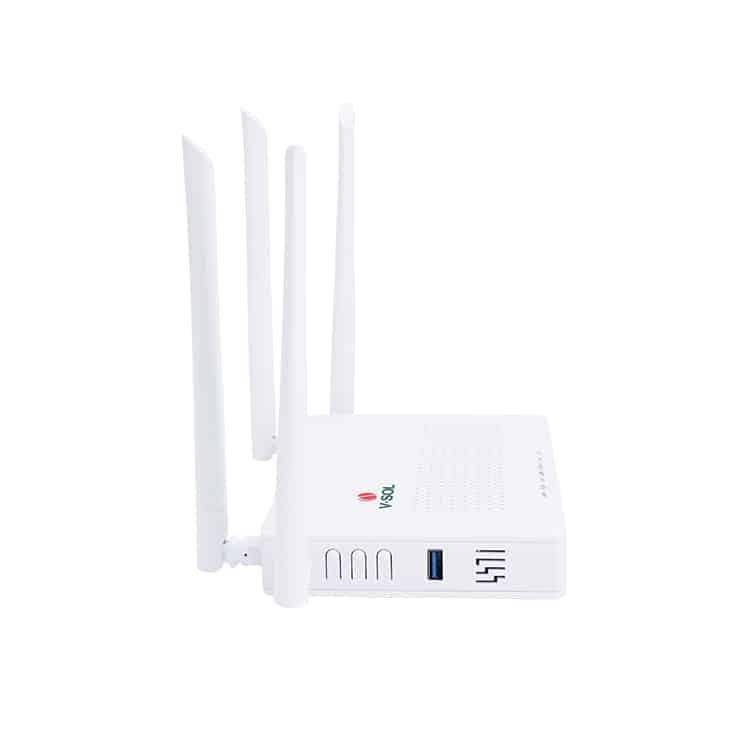

USB interface

USB 3.0 for Shared Storage/Printer

○   Function Data

XPON mode

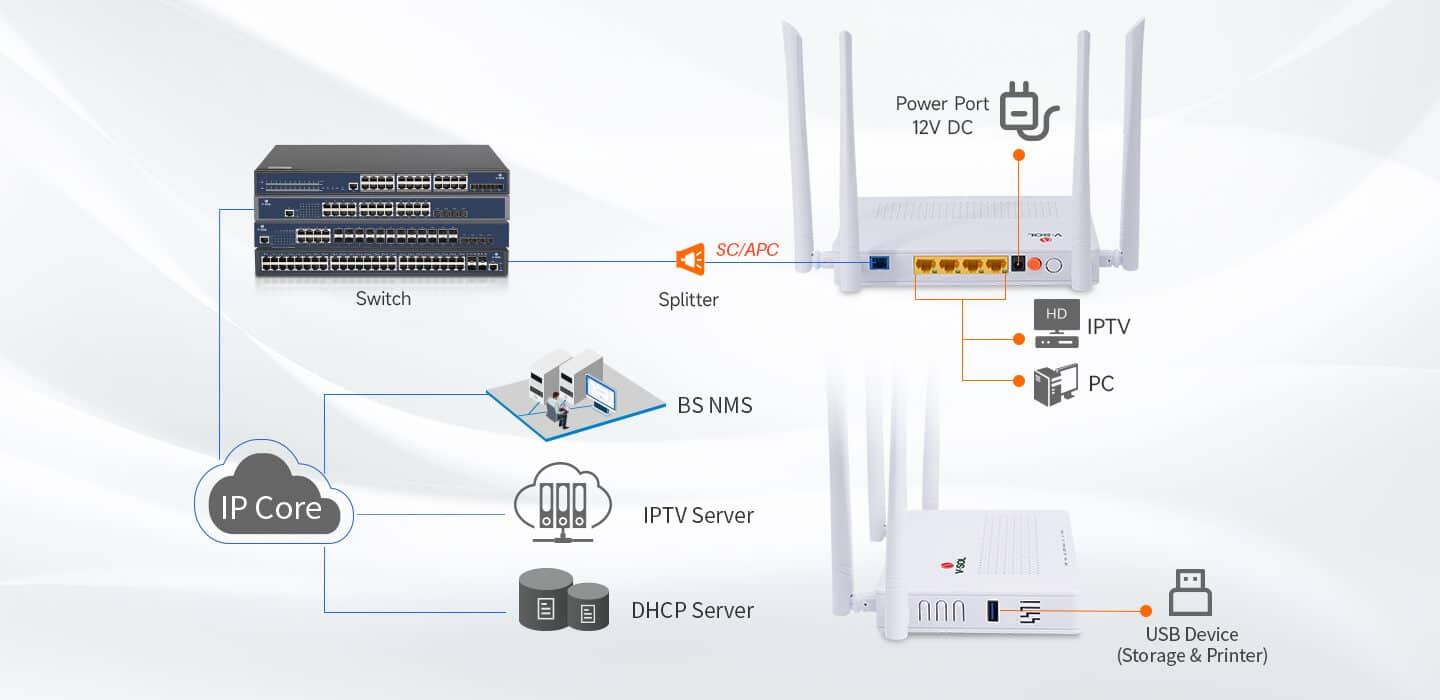

Dual mode , can access EPON/GPON OLTs(HUAWEI,ZTE,FiberHome, etc.)

Connect mdoe

Routing Mode

W-iFi

l  IEEE802.11b/g/n/ac(TX power:17dBm/16dBm/15dBm)

l  Wi-Fi Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES)

Firewall

DDOS, Filtering Based on ACL/MAC/URL

Layer2

802.1D & 802.1ad bridge, 802.1p Cos,802.1Q VLAN

Layer3

IPv4/IPv6 , DHCP Client/Server , PPPoE , NAT , DMZ , DDNS

Multicast

IGMP v1/v2/v3 , IGMP snooping

Security

Flow & Storm control, Loop Detection

O&M

WEB/TELNET/OAM/OMCI, Support private OAM/OMCI protocol and Unified network management of VSOL OLT
